Standard Size Diesel Performance Pistons , RA Metal Piston Rings 86716

Product Description

Diesel Engine Piston PERKINS 4.318 PISTON/PASADOR/CLIP NON-ALFIN 114.31mm 86716

Reference Number

86716

5213

Piston details:

Piston Dia: 114.31mm

Piston Length: 124.61mm

COMP DIST: 70.676mm

Pin Dia: 36.513mm

Pin Length: 98.5mm

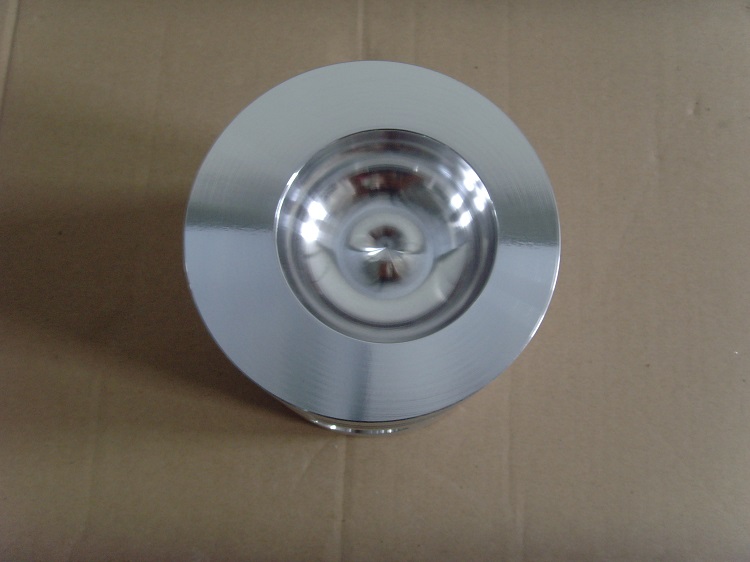

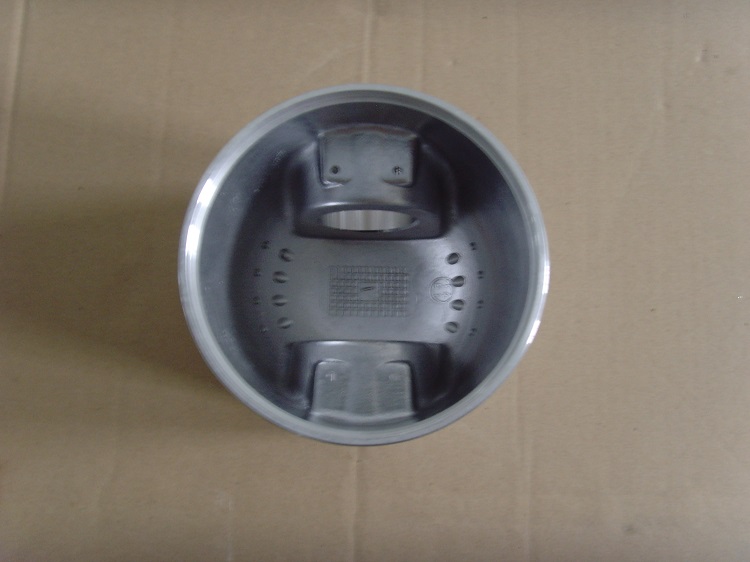

Detailed Images

We can also supply the below pistons for Perkins

DESCRIPTION	PISTON DIA	PISTON LENGTH	PISTON COMP DIST	Ring Comp01	Ring Comp02	Ring Comp03	Ring Oil01	Ring Oil02	PIN DIA	PIN LENGTH
115017621 WR	77	65.6	36.2	2	1.6			3	21	55
89216 741335M91 4.107	79.375	80.7	45.6	2	1.8	1.8	4.8	4.8	23.8	69
	80.8	97.4	60.2	2.1	2.1	2.1	4	4	25.4	68
5220 7SN	84	87.8	47.7	2	1.5		2		28	72
X115017491	84	87.5	47.7	2	1.5		3		28	72
5130 8UD X115017541	84	87.7	47.7	2	1.5			3	28	72
5151 C9N X115017581	84	87.7	47.7	2.0K	1.5			3	28	72
5180 68D X115017551	84	87.8	47.7	2.0K	1.5			3	28	72
1884101M91 P115017491	84	98.2	55.15	2.5	2.5	2.5	4.8	4.8	28.575	71
5JN	84	87.6	47.7	2.1	1.558		3.175		28	72
11010130	85	87.5	50.8	2	2	2	4.8	4	22.225	74
	86.92	87.48	50.96	2.06	2.06		4.82	4.82	22.225	74
S349	88.9	99	51	2.5	2.5	2.5	4.8	4.8	28	77
40405 MF135 68332	91.48	109.6	0	2.4	2.4	3.2	6.4	6.4	31.75	75
MF240	91.48	109.5	61.9	2.4	2.4	3.2	6.4	6.4	31.75	75
MF240 4RINGS	91.48	109	61.6	2.5	2.5	2.5	4.8		31.75	75
PR65716AL	91.48	107.6	56.825	2.4	2.4	3.2	6.4	6.4	31.75	75
89214 31354984	91.48	109	61.6	2.5	2.5	2.5	4.8		31.75	75
MF165 81512 3152/4203 K-1178	91.48	107.9	57.32	2.38	2.38	3.18	6.38	6.38	31.75	75
408108	91.491	107.6	56.825	2.4	2.4	3.2	6.4	6.4	31.75	75
MF240 D4 350245 68332AL	91.491	109.4	61.7	2.4	2.4	3.2	6.4	6.4	31.75	75
D1－1722	98.42	120.5	70	3	2.5		4.8		34.925
68301	98.476	121	70.2	2.381	2.381	2.381	6.35	6.35	34.925	84
31354353	98.476	120.8	69.93	2.4	2.4	2.4	6.4	6.4	34.925	84.5
01-1717	98.476	120.8	70.2	2.4	2.4		4.74		34.925	84
4.236 MF265 82878 735187M91	98.476	121	69.9	2.381	2.381	2.381	6.35	6.35	34.925	84
MF265 31354356 683000	98.476	121.4	70.66	2.4	2.4	2.4	6.4	6.4	34.925	84
RP65726 020B-4236/6354 K-1338-F-MLE	98.476	121.5	71	2.4	2.4		4.8		34.925	84
236459874 9320-97526	98.476	121	70.19	2.5	2.5		4.8		34.925	84
U5LP0022 3637360M91 A4.236 K-1684-F 31355106	98.48	108.3	70.05	3	2.5		4.9		38.1	83
	98.48	121	70.2	2.38	2.38	2.38	6.4	6.4	34.925	84
MF265 98.48MM 68301	98.48	121	70.25	2.4	2.4	2.4	6.4	6.4	34.925	84
MF375 68301	98.48	121	70.2	2.38	2.38	2.38	6.4	6.4	34.925	84
68301	98.48	121	70.2	2.5	2.5	2.5		6.4	34.925	84
MF375 68301	98.48	121	70.16	2.38	2.38	2.38	6.4	6.4	34.925	84
68301	98.48	121	70.25	2.4	2.4	2.4	6.4	6.4	34.925	84
MF375	98.48	121	70.16	2.38	2.38	2.38	6.4	6.4	34.925	84
86740	98.48	121	69.9	2.38	2.38	2.38	6.4	6.4	34.925	84
MF375	98.48	121	70.2	2.38	2.38	2.38	6.4	6.4	34.925	84
82878	98.48	120.7	69.9	2.38	2.38	2.38	6.35	6.35	34.925	84
86721 5R	98.48	127.28	76.53	2.5	2.5	2.5	6.4	6.4	34.925	84
U5LP0035 82878	98.48	121	69.9	2.4	2.4	2.4	6.38	6.38	34.925	84
U5LP0011	98.48	108.5	70.55	3	2.5		4.8		38.1	82.5
D1－1718	98.48	108	70	3	2.5		4.9		38.1	82.5
AIP 11010122	98.48	127.3	76.5	2.385	2.385	2.385	6.335		34.925
89206	98.48	116	76.5	2.5	2.5		6.3		34.925	84
3638796M1	100	108	70	3.4	2.6		4		38.1	82.5
P553920	100	108.2	69.85	3.5	2.5		4		39.7	78
1000-T K-9160-MLE	100	108	70.05	ADK3.5	2.5		4.0		38.1	82.5
U5LL0047 3135J259	100	108	74	3.5	2.8		4		38	83
U5LP0057	100	108.23	70.3	3.5DK	2.5		4		39.7	78
3135J217	100	108	70.16	2.5	2.8			4	34.925	84
U5LF0021 3135J183	100	108	70.05	3.5D	2.7		4		39.7	78
U5LF0023 3135J185	100	108	70.05	3.5DK	2.7			4	39.7	78
U5LP0057 3135J241 T27 94543600	100	108.23	70.3	3.5DK	2.5		3.5		39.7	78
U5LL0016	100	103	70.5	3.34	2.64	3.94			38.1	82.8
4115P001	100	108.23	70.3	3.5	2.5		3.5		39.7	78
99.89	100	108.24	70.25	3.2	2.46	3.98			39.7	78
D5LLOO14	100	103	70.05	3.34	2.46	3.94			38.1	82
U5LL0021	100	102	70.46	2.54	2.54		4		34.925	84
	100	108	70.2	2.5	2.5		4		34.925	84
D1-1725	100	108	70	2.5	2.5		4		34.925	84
7175792 RP65764	100	108	69.9	3	2.5			4	38.1	82
89207－5	100.9	121.2	70.5	2.5	2.5	2.5	6.3	6.3	35	82
89207 92144 W23L	101.05	121.2	70	2.5	2.5	2.5		6.4	34.925	84
8671753	100.97	121	70	2.5	2.5	2.5	6.4		34.925	84
100.88	101	121	70	2.5	2.5	2.5	6.4		34.925	84
4248 With4rings k-1477 U5LL0031	101.05	121	70.16	2.5	2.5		5.0		34.925	84
89207AL	101.05	120.7	69.86	2.4	2.4	2.4	6.4		34.925	84
100.92 CL0.13	101.05	120.7	69.86	2.4	2.4	2.4	6.4		34.925	84
P4000 K-2257-MLE 101L29 MF440	101.06	108.5	70.46	ADK3.0	2.5		4.0		34.925	77
	101.05	121	70.16	2.4	2.4	2.4	6.4	6.4	34.925	84
	100.9	121.1	70.1	2.44	2.44	2.44	6.39	6.39	34.925	84.7
071N23 80-3604-90	101.05	121	70.5	2.38	2.38	2.38	6.4	6.4	34.925	84
