U5LP0035 Diesel Engine Piston Metal Material With Non - Alfin 98.476mm

Product Categories

R&A INTERANTIONAL CO.,LTD

Contact Now

U5LP0035 Diesel Engine Piston Metal Material With Non - Alfin 98.476mm

Ask Lasest Price
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	1000pcs per month
Delivery Time :	15days after receiced your payment
Brand Name :	RA

Add to Cart

Product Details
Company Profile

U5LP0035 Diesel Engine Piston Metal Material With Non - Alfin 98.476mm

Product Description

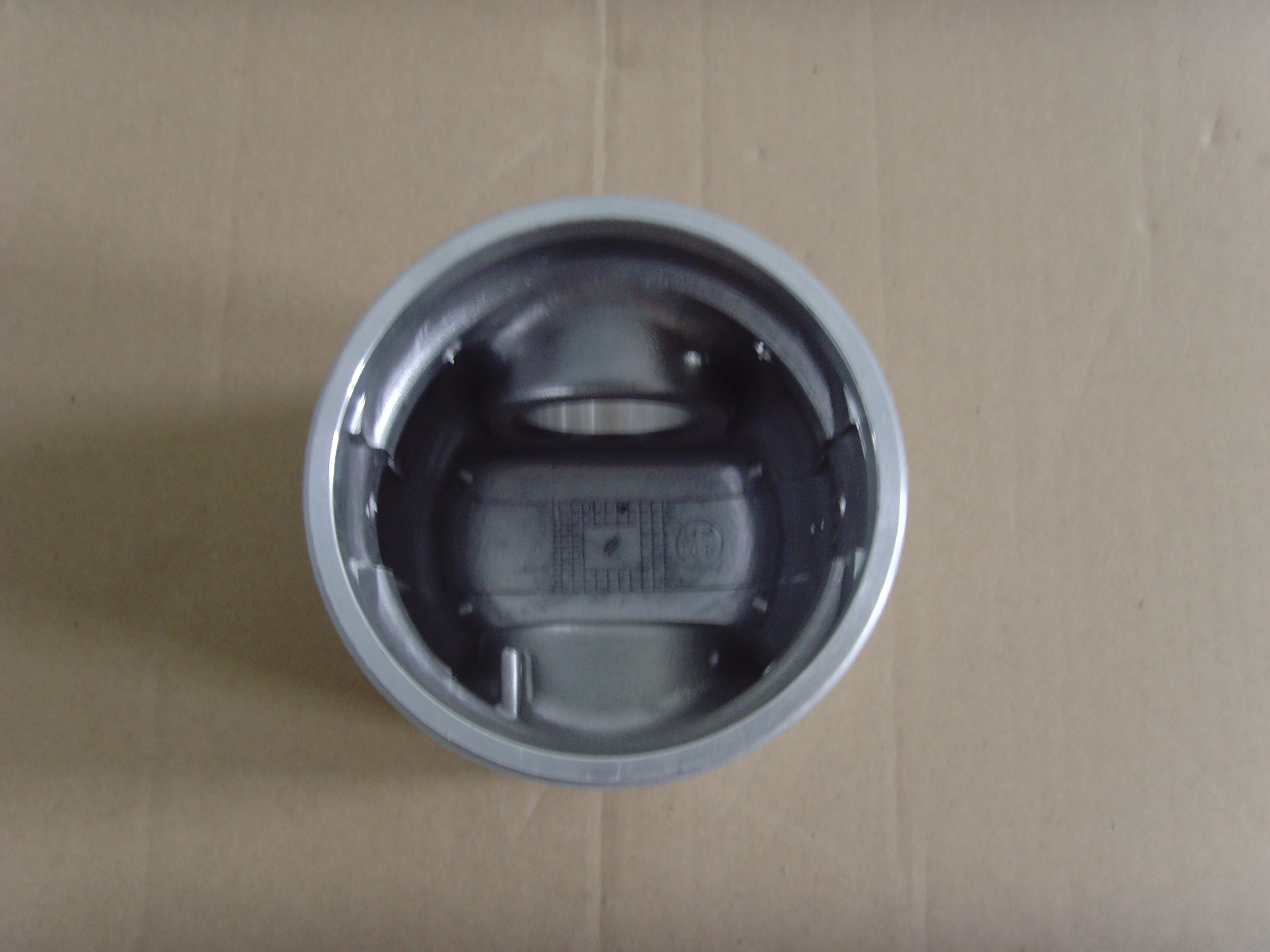

Diesel Engine Piston PERKINS MF265 PISTON/PIN/CLIP (NON-ALFIN) 98.476mm U5LP0035

Reference Number

U5LP0035

31354356

683000

Piston details:

Piston Dia: 98.476mm

Piston Length: 121.4mm

COMP DIST: 70.66mm

Pin Dia: 34.925mm

Pin Length: 84mm

Detailed Images

We can also supply the below pistons for FORD

DESCRIPTION	PISTON DIA	PISTON LENGTH	PISTON COMP DIST	Ring Comp01	Ring Comp02	Ring Comp03	Ring Oil01	Ring Oil02	PIN DIA	PIN LENGTH
351W/B 5.7 1997-93 D7DZ6108A-B D30Z6108G-H D9AZ6108G-HP302	101.6	85.3	44.5	2	2		4.76		23.165	76.7
D6NN6108L	106.6	129	70.55	2.5	2.5	2.5	4.8		38.1	89
82854129 EDG	106.6	129	70.05	2.5	2.5	2.5	4.8		38.1	89
D4NN6108L	106.61	129	70.55	2.5	2.5	2.5	4.8		38.1	89
793F6110AAA 350032 D906-A1211	107	120.3	71.25	2.5	2.5	2.5	4.8		36.513	90
D6NN6108N 020	107	129	70.25	2.4	2.4		4.8		38.1	89
D4NN6108N 020	107	129	70.25	2.4	2.4		4.8		38.1	89
EF2506E TRACTOR D4NN6108AA 87295262 81846014	111.56	129.5	70.75	2.4	2.4	2.4		4.8	38.1	89
87295261 EONN6108AA 83928178	111.58	127	68.05	2.5	2.5	2.5		4.8	38.1	89
D5NN6108S 87295242	111.58	127	68.05	3	2.5	2.5	4.8		38.1	89
37554703	111.58	127	68.05	2.5	2.5	2.5	4.8		38.1	89
FORD 6.6 F1HZ6108A	111.76	111.2	72.9	3DK	2.5		4.8		41.2
87802364	111.76	111.2	72.9	3DK	2.38		4.8		41.275	94
B87801255 82841892	111.76	111.2	73.55	2.4	2.4		4.8		38.1	89
B87801044 82841446	111.76	111.2	72.9	3DK	2.38		4.8		41.275	94
87800247	111.76	127	68.82	2.4	2.4	2.4	4.8	4.8	41.275	89
83960625 E7NN6108AA 87295264	111.76	126.9	68.15	2.5	2.5	2.48		4.82	38.1	89
D7NN6108A 82955398 B 4531CG	111.76	127	67.825	3DK	2.5	2.5	4.8		41.275	89
FONN6108FB F001-L775	111.76	126.5	73.05	2.5	2.5		4.8		38.1	89
87801334 82850252	111.76	126.5	72.92	3	2.5		4.8		41.275	94
FONN6108FB	111.76	126.5	73.05	2.5	2.5		4.8		38.1	89
D4NN6108AC	111.76	129.5	70.65	2.5	2.5	2.5	4.8		38.1	89
FONN6108AB	111.76	134.3	80.85	2.5	2.5		4.8		38.1	89
D9NN6108FA	111.76	127	67.825	3DK	2.5	2.5	4.8		41.275	89
99900065(87800266) 87800246	111.76	127	68.05	2.4	2.4	2.4	4.8		38.1	89
87554721	111.76	129.5	70.325	3	2.5	2.5	4.8		41.275	89
EF2506E D4NN6108AA	111.76	129.5	70.75	2.4	2.4	2.4	4.8		38.1	89
82955418 B LZF	111.76	129.5	70.55	2.5	2.5	2.5	4.8		38.1	89
87800246 B 402CG	111.76	127	68.05	2.4	2.4	2.4	4.8		38.1	89
82955398 B 4531CG	111.76	127	67.825	3DK	2.5	2.5	4.8		41.275	89
82955409 B 034EG	111.76	129.5	70.325	3DK	2.5	2.5	4.8		41.275	89
EF2506E 793F-6110-AAA	111.76	129.5	70.75	2.4	2.4	2.4	4.8		38.1	89
